Embedded System

  • A slim and compact range of fanless embedded systems, FXUIBX-210-CV-N2600 fanless embedded system features Intel Atom N2600 1.6GHz dual-core processor, Intel NM10 Express Chipset and 2GB DDR3 memory. The Intel GMA 3600 with 400MHz core speed integrated in the Intel Atom N2600 processor allows the FXUIBX-210-CV-N2600 to present high-performance multimedia applications through the VGA and HDMI interfaces and its dual-display capability. Key features of FXUIBX-210-CV-N2600 fanless embedded system: • 12V-only single voltage design with low power consumption • Supports AT/ATX power mode selection Internal PCIe Mini card slot allows expansion for compatible mSATA devices • 4 USB 2.0 ports, 3 serial ports and 2 audio jacks simplify connectivity to various external peripheral devices • UEFI BIOS ensures steady system operation XUECON's exclusive One Key Recovery software solution enables full system recovery after unexpected system failure

    Detail
  • FXECW-281B-D2550 Fanless Embedded System is designed for rugged applications with limited space. It features Intel's Atom D2550 Dual-Core 1.86GHz CPU, Intel NM10 Express Chipset, and includes 2GB DDR3 SO-DIMM system memory. This Compact Fanless Embedded Computer supports 4x COM Ports (3x RS232 and 1x RS422/485), 4x USB2.0 Ports, 2x Gigabit Ethernet Ports, 1x VGA and an Audio jack to simplify connectivity to a variety of external peripheral devices. The 2.5" SATA Bay can support a Solid State Disk or Hard Disk Drive. Expansion is available via two PCIe Mini slots (one full-size and one half-size). Plus, an optional 2T2R 802.11b/g/n wireless module is available for greater connectivity. The FXECW-281B-D2550 meets the MIL-STD-810F shock and vibration specifications for rugged environments. In addition, the tiny footprint of only 229mm x 132mm allows it to be easily integrated into applications with limited space. The flexible mounting options allow this Embedded System to be DIN-Rail, VESA 100 or Wall-mounted to suit a variety of applications such as automation, digital signage and process control. The product includes the company’s One Key Recovery software solution, which eliminates the frustration of system recovery after unexpected system failure. It is an easy way to create full system backup on demand and to restore the system from such a backup with a single click.

    Detail

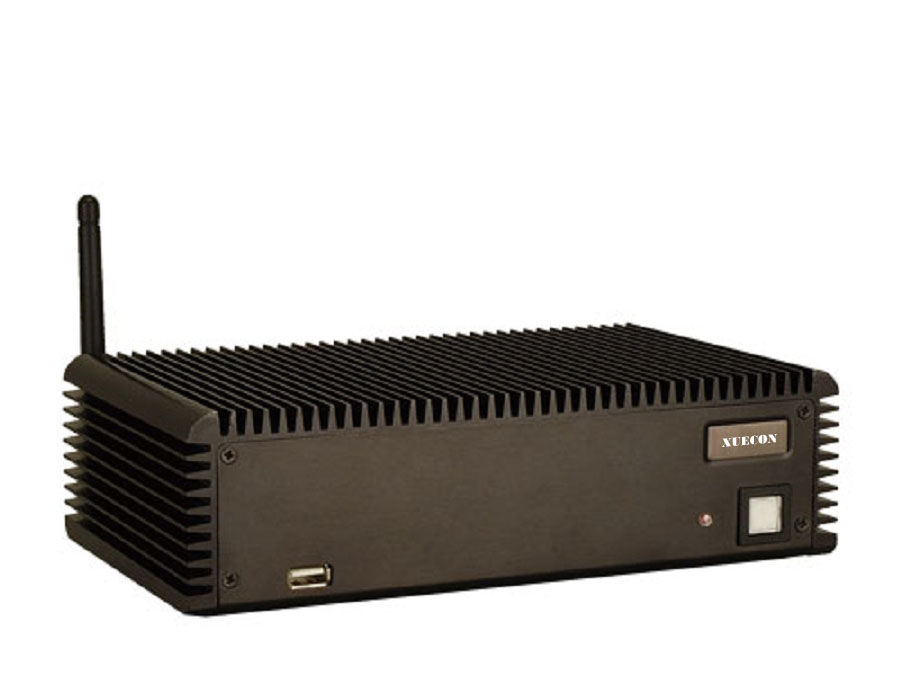

  • FXECW-281B/B2 Fanless Embedded System Series (B-D525, B2-D525, B-N270, B2-N270, and B-N270-WT) comes with 1.8 GHz Intel® Atom™ D525 dual-core CPU or 1.6 GHz Intel® Atom™ N270 CPU. Supports four USB 2.0 ports and six COM ports and Dual GbE LAN ideal for high-speed network applications. Supports CompactFlash®, 2.5” SATA HDD and SSD storage devices and 12 VDC and 9 VDC - 36 VDC power input models available. Supports dual VGA display (B2 model only)

    Detail
  • Function : ◆ INTEL® Bay Trail-D J1900 SoC Processor, 2.0GHz, 2MB high-speed cache,10W ◆ Suypport 1*DDR3L 1.35V 1333Mhz low voltage SO-DIMM Max to 8GB ◆ 2*Intel® i211AT Gigabit LAN ◆ Support 1*2.5” SATAII device, 1* m SATA ◆ 1* HDMI, 1* VGA high-definition outputs ◆ Supports wireless 802.11 b/g/n communication module & expansion antenna installation ( optional) ◆ Supports wireless firm expansion module design, Wall –mount, VSEA mount & DIN rail Integration ◆ Supports 12V DC power in

    Detail
  • FXECN-360A-HM65 and FXECN-360A-D2550 Fanless Embedded Systems come with Intel® Solution * Intel ® Dual Core D2550 1.86 GHz processor Intel® Dual Core N2600 1.6 GHz processor * 8 COM model: 6 x RS-232, 2 x RS-232/422/485 16 COM model: 14 x RS-232, 2 x RS-232/422/485 * 6 x USB 2.0 * Dual PCIe GbE LAN for high-speed network applications.

    Detail
  • TB382I54300U is a fan less design embedded system with Aluminum Black housing / INTEL® Haswell ULT i5-4300U / AMI 32MB SMT Flash ROM / 2 * SO-DIMM (DDR3-1333/1600Mhz_Max 16GB) / 1 * Mini PCI-E (Half-size) / 1 * 2.5” SATA Device / 4 * USB 2.0 / 4 * USB 3.0 / 4 * COM port / DC-12V Jack input

    Detail

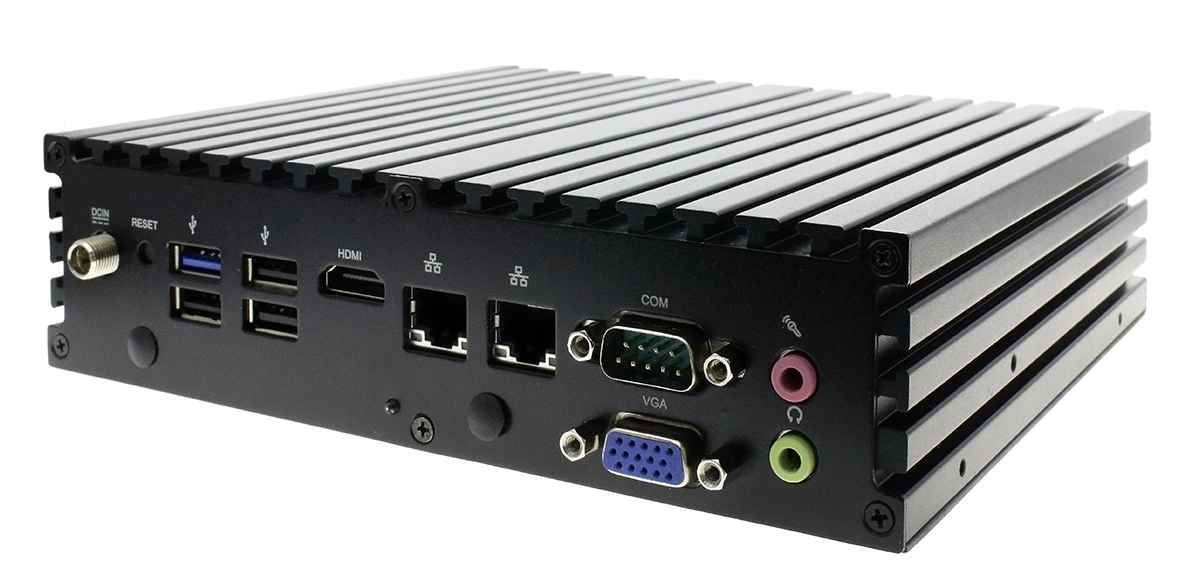

  • A fan less design system with Aluminum Black housing / INTEL® Bay Trail-D J1900 SoC Processor / AMI UEFI / One CH SO-DIMM / DDR3L 1333/1066MHz (Max. up to 8GB ) /2.5” SATA Device * 1 / m-SATA SSD (mini-PCIE Slot) * 1 / USB3.0 * 1 , USB2.0 * 3 / VGA * 1 , HDMI * 1 / Giga LAN * 2 / MIC * 1 , Line out * 1 / COM * 1 / DC-in Jack * 1 / Reset SW * 1 / WiFi Port * 2 (optional) / Option with choose 4* com ports / 4 * LANS

    Detail
  • Features  Intel® BayTrail-D SoC Processor, Celeron J1900  Intel® HD Graphics  1x DDR3L SODIMM up to 8GB  1x VGA,1xHDMI, 2xGbE, 2xCOM  1x DIO, 4xUSB 2.0, 1x USB3.0 and Audio  2x Mini-PCIe sockets, 1x Option mSATA slot supported  1x 2.5” SATA HDD or SSD  Fanless design

    Detail
