FXECW-281B-D2550 Fanless Embedded System





FXECW-281B-D2550 Fanless Embedded System designed for rugged applications with limited space.

The FXECW-281B-D2550 features Intel's Atom D2550 Dual-Core 1.86GHz CPU, Intel NM10 Express Chipset, and includes 2GB DDR3 SO-DIMM system memory.

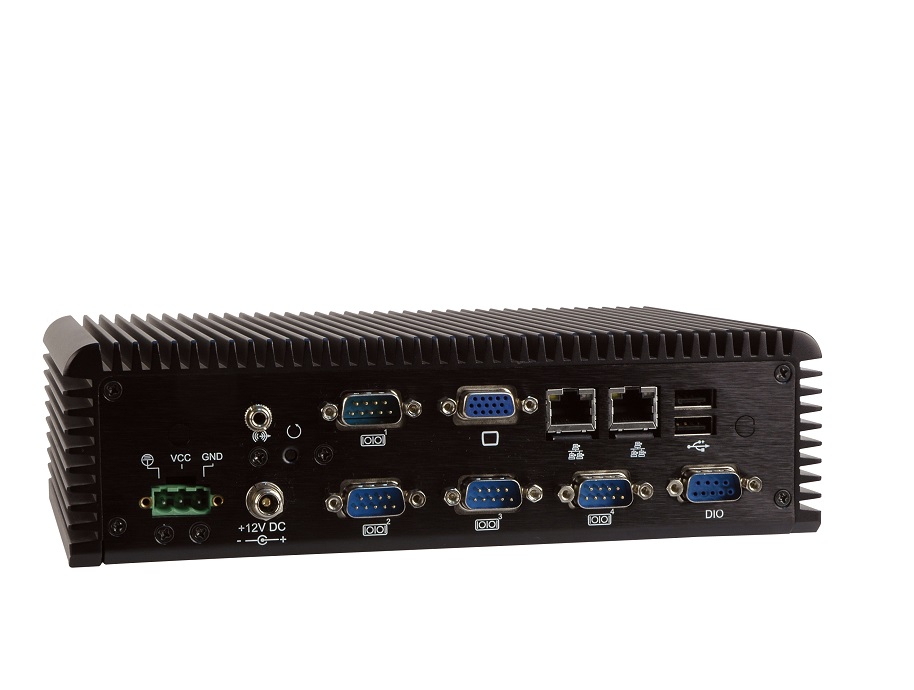

This Compact Fanless Embedded Computer supports 4x COM Ports (3x RS232 and 1x RS422/485), 4x USB2.0 Ports, 2x Gigabit Ethernet Ports, 1x VGA and an Audio jack to simplify connectivity to a variety of external peripheral devices.  The 2.5" SATA Bay can support a Solid State Disk or Hard Disk Drive.

Expansion is available via two PCIe Mini slots (one full-size and one half-size). Plus, an optional 2T2R 802.11b/g/n wireless module is available for greater connectivity.

The FXECW-281B-D2550 meets the MIL-STD-810F shock and vibration specifications for rugged environments.  In addition, the tiny footprint of only 229mm x 132mm allows it to be easily integrated into applications with limited space.

The flexible mounting options allow this Embedded System to be DIN-Rail, VESA 100 or Wall-mounted to suit a variety of applications such as automation, digital signage and process control.

The product includes the company’s One Key Recovery software solution, which eliminates the frustration of system recovery after unexpected system failure. It is an easy way to create full system backup on demand and to restore the system from such a backup with a single click.
