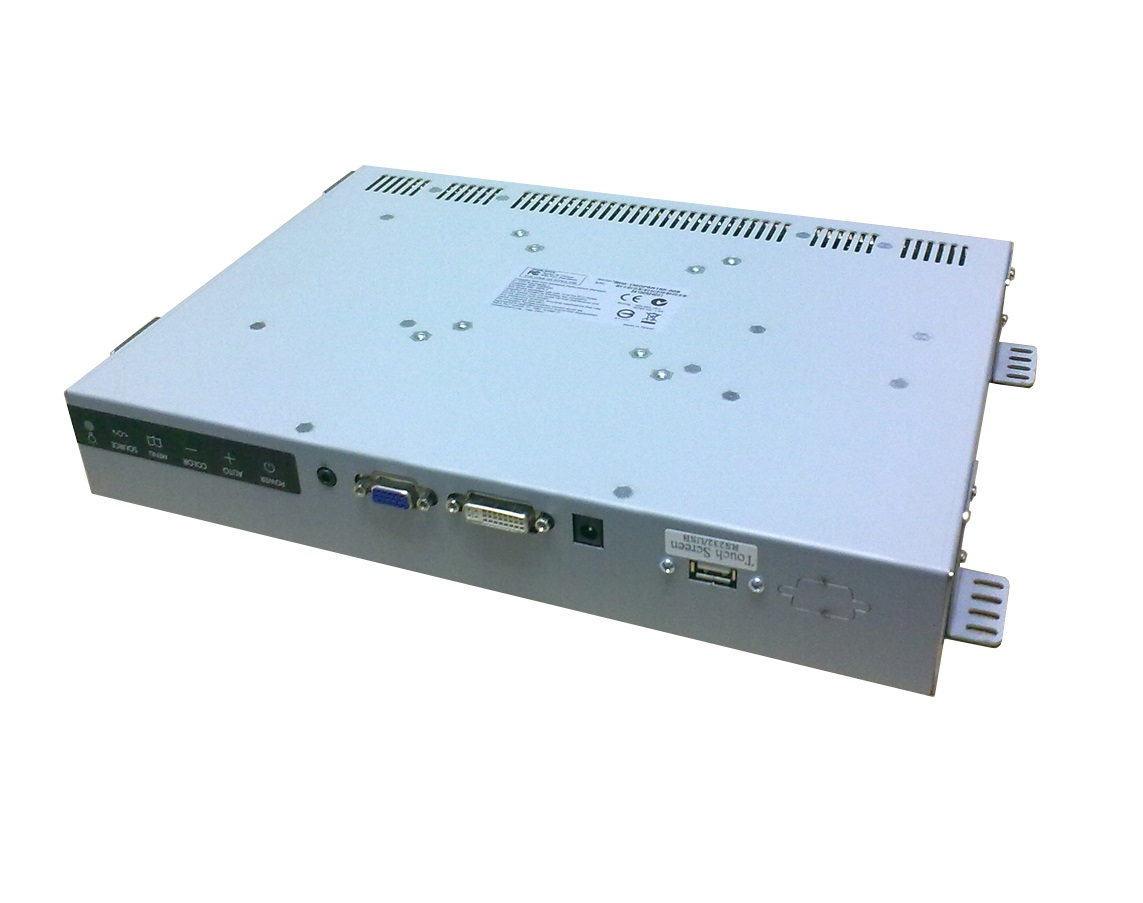

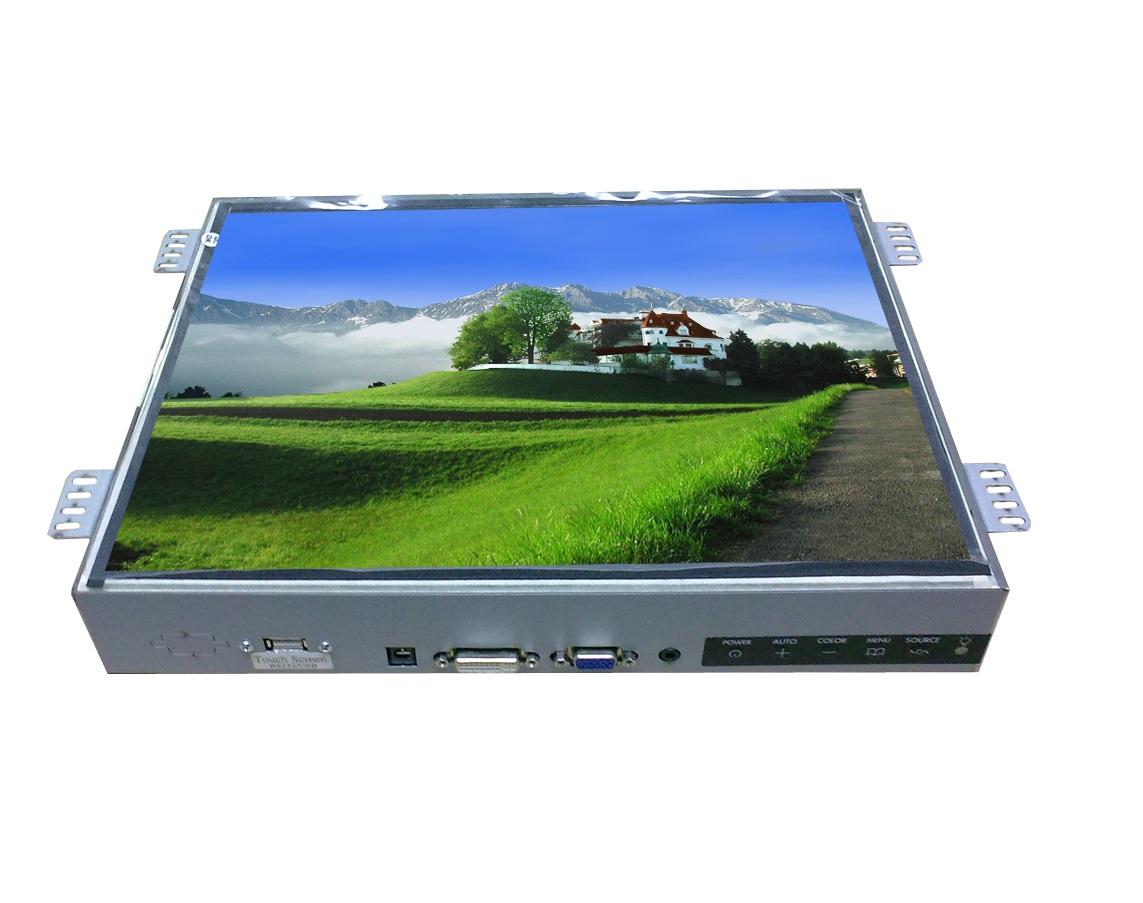

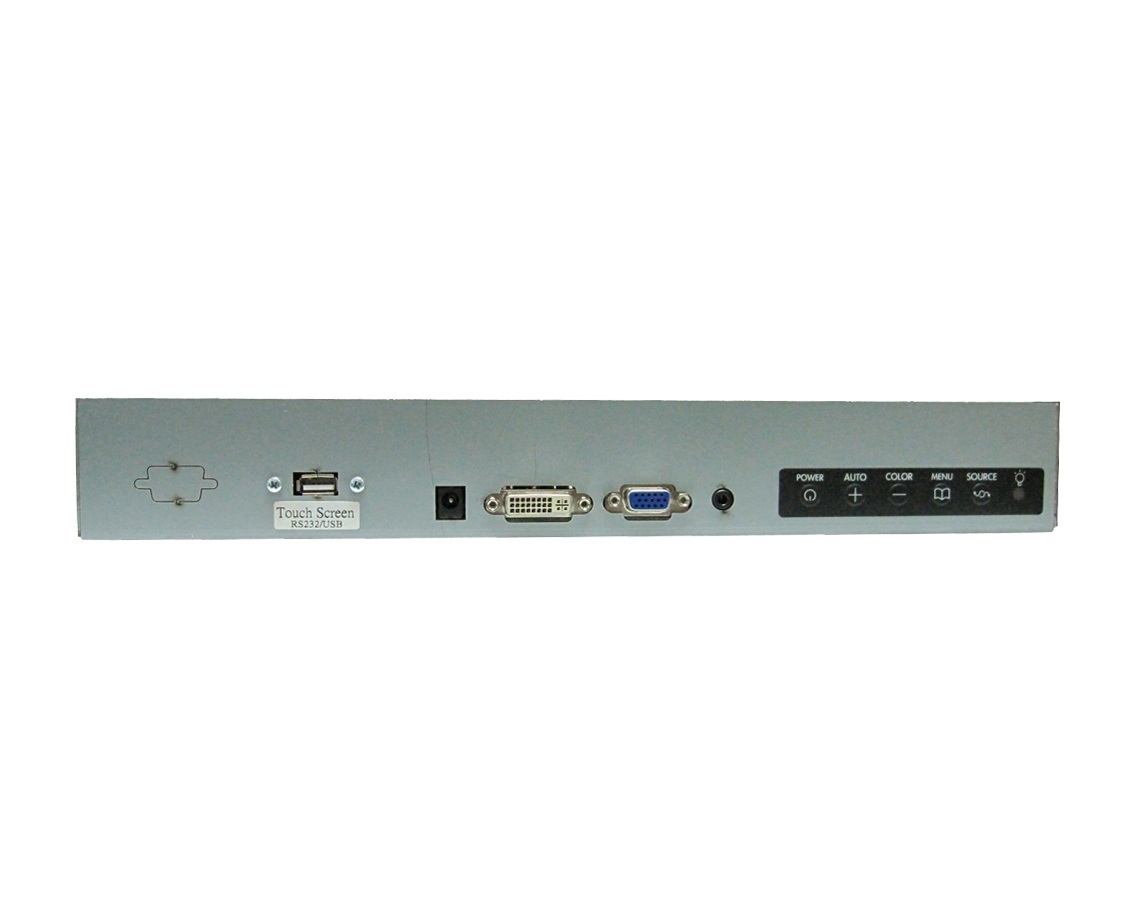

17-inch OEM LCD Resistive Touch Open Frame Monitor


· Click to download specs



Specification



‧Model

17" OEM LCD Resistive Touch Open Frame Monitor

‧Screen diagonal

17 inch (4:3)

‧Brightness

250cd/m2

‧Contrast ratio

1000 ﹕1

‧Response time

12ms

‧View angle

(V) 160° /  (H)160°

‧Warranty

One Year warranty

‧Resolution

1280 x 1024

‧Pixel pitch

0.264(H)X0.244(V)mm

‧Horizontal frequency

50~75Hz

‧Vertical frequency

30~80KHz

‧Lamp

50,000hrs

‧Signal

Analog

‧Signal input

VGA D-Sub / DVI - in

‧Adjustment function

OSD auto signal adjust / brightness / contrast / clock / phase

‧System support

PC/Mac

‧Power adapter

100~240VAC/50~60Hz

‧Power consumption

48W

‧Stand-by power

< 3W

‧Dimension

Depend on design

‧Net weight

Depend on design

‧Packing dimension

5-set in one carton

‧Option

5-wire resistive touch with USB or SR232 interface

‧Speaker

Speaker X 2 W

‧Accessory

Adapter / AC-Code / D-Sub cable / Audio cable / User Manual
