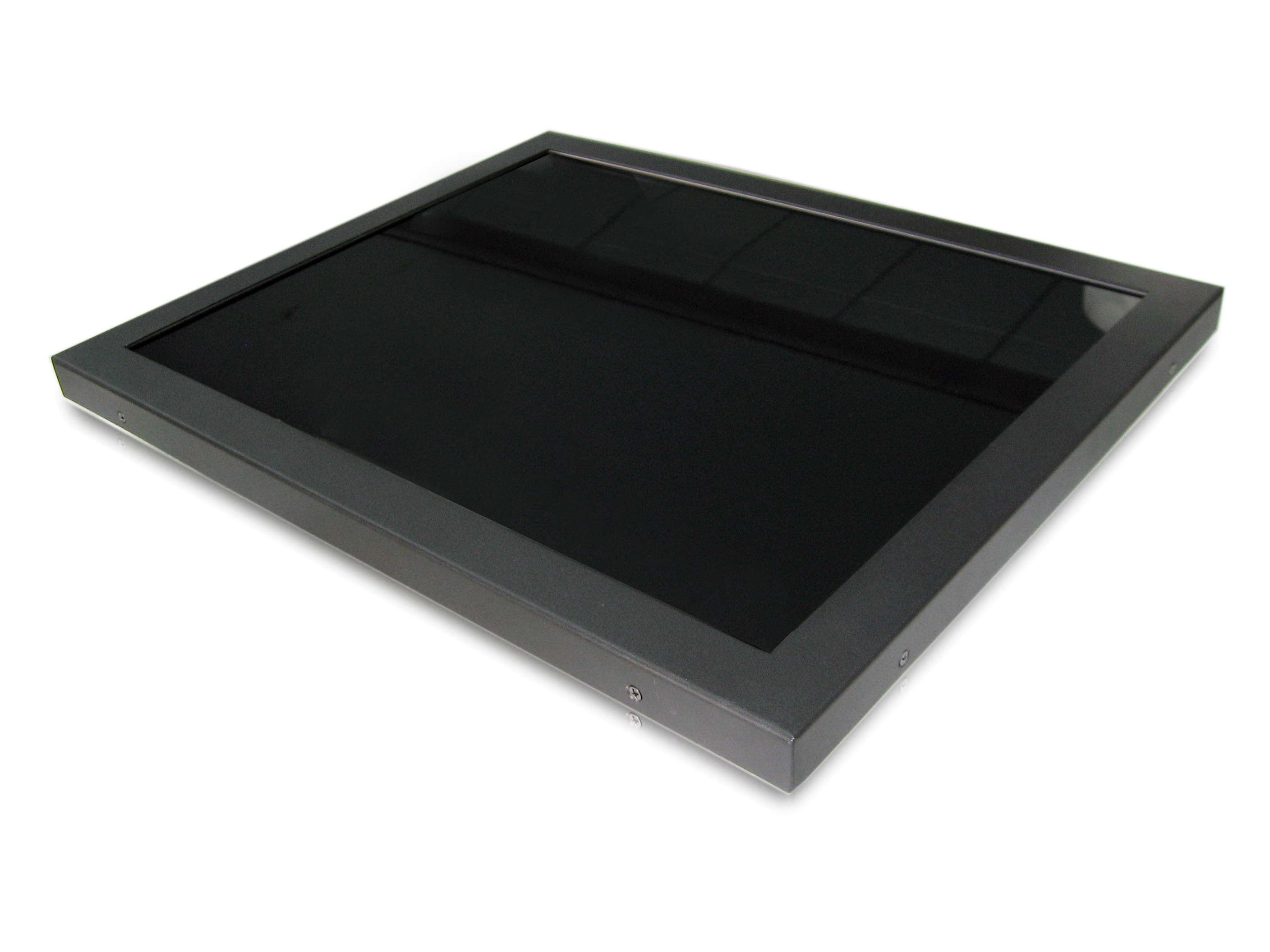

10.4-inch LCD Black Metal (VGA+DVI) Monitor (with optional Touch)


Specification

‧Model 10.4" LCD Black Metal (VGA+DVI) Monitor (with optional Touch)
‧Screen diagonal 10.4 inches
‧Brightness 230 cd/m2
‧Contrast ratio 400 ﹕1
‧Response time Tr + Tf : 25 ms
‧View angle (L/R ) 65 /65 ° / ( U/D ) 45/ 65 °
‧Warranty One Year warranty
‧Resolution 800 x 600
‧Pixel pitch 0.264 x 0.264 mm
‧Horizontal frequency 24~82KHz
‧Vertical frequency 50~75Hz
‧Lamp  20,000hrs
‧Signal  Analog / Digital
‧Signal input VGA x 1 / DVI x1 / Display Port x 1 / Audio-in x1 / DC-in x 1
‧Adjustment function OSD auto signal adjust
‧System support PC/Mac
‧Power adapter 100~240VAC/50~60Hz
‧Power consumption 48 W
‧Stand-by power < 3W
‧Dimension 265(W) x208 ( H) x48 ( D) mm
‧Net weight 2.5kg
‧Packing dimension 3-set  or 5-set in one carton
‧Touch panel option Resistive touch / Capacitive touch with RS232 or USB interface
‧Accessory Adapter / AC-Code / D-Sub cable / Audio cable / User Manual
