XU BOX -BT190




◎ Specifications :



n  Product Dimension

n  185 (W) * 165 (D) * 48 (H) mm

n  Product Model

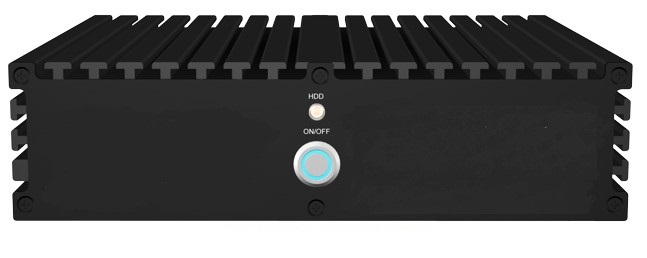

n  TB390BTJ1900-X(W)19B (Stander)

n  TB390BTJ1900-A(W)19B ( 8 LAN )

n  TB390BTJ1900-C(W)19B ( 8 COM )

n  MB Model & Size

n  TNF541-1900

n  BIOS

n  AMI UEFI

n  CPU

n  INTEL® Bay Trail-D J1900 SoC Processor

n  Memory

n  One CH SO-DIMM / DDR3L 1333/1066MHz (Max. up to 8GB )

n  Storage

n  2.5” SATA Device * 1

n  m-SATA SSD (mini-PCIE Slot) * 1

n  Colors

n  Black

n  Front I/O Port

n  Power SW * 1

n  HDD LED * 1

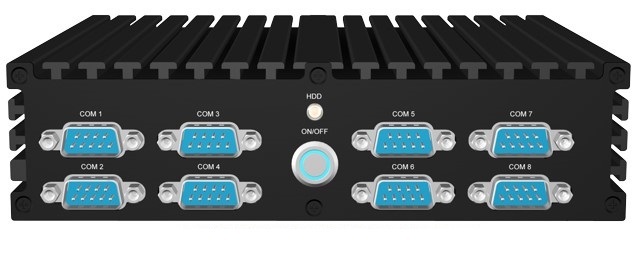

n  COM * 8 ( TB390BTJ1900-C(W)19B only)

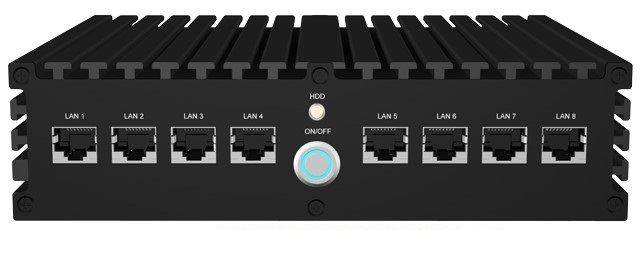

n  Intel Giga LAN * 8 ( TB390BTJ1900-A(W)19B only)

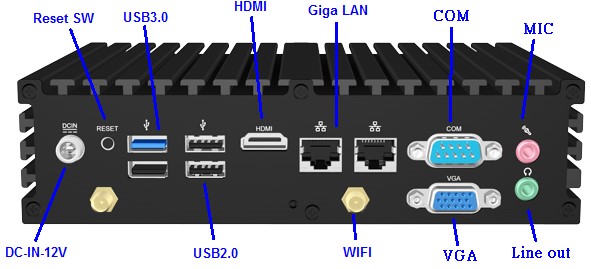

n  Rear I/O Port

n  USB3.0 * 1 , USB2.0 * 3

n  VGA * 1 , HDMI * 1

n  Giga LAN * 2

n  MIC * 1 , Line out * 1

n  COM * 1

n  DC-in Jack * 1

n  Reset SW * 1

n  WiFi Port * 2 (optional)

n  Power Source

n  AC 90~240V / 60W / DC-12V Adapter / Lock

n  Expansion Interface

n  Mini PCI-E * 2 (Full-size)

n  Accessory

n  Power cord * 1

n  User’s Manual * 1 , CD * 1

n  Wall mount * 1

n  Screw Package * 1

n  ­­Packing

n  Net Weight：2.4KG

n  Gross Weight：3.4KG

n  Color Box Dimension：  250 (W) x 118 (D) x 295 (H) mm

n  ­­Temperature

n  Operating within 0~60 centigrade

n  Storage within -10-70 centigrade

n  Certification

n  EMC : CE , FCC

n  Safety : RoHS , ErP

n  ­­Applications

n  Industrial Control System

n  Networking Server System
