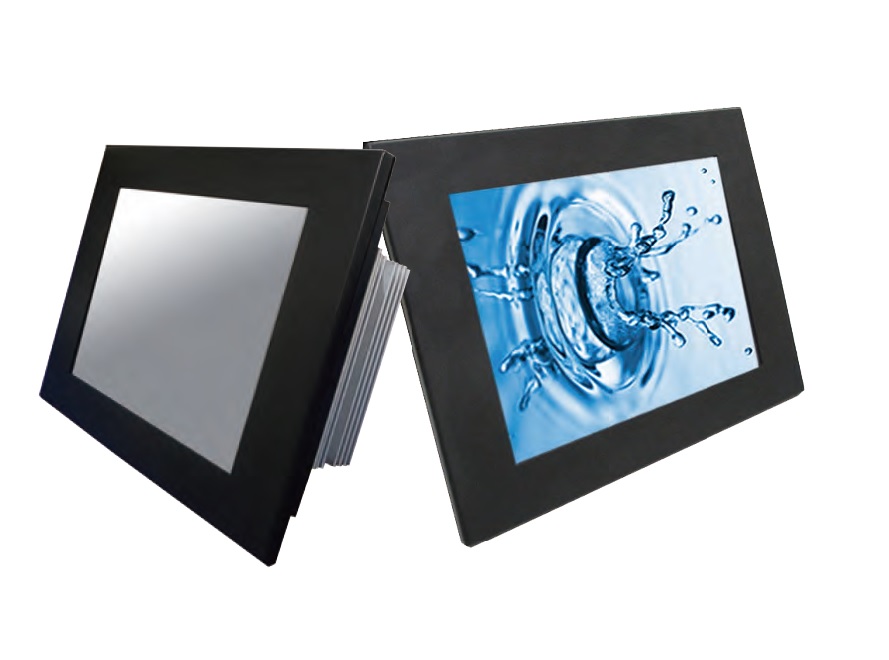

FXPPC-235-D25 23-inch Industrial Touch Panel PC with Intel Cedar Trail-M Processor N2600
LCD Panel Specification - INTEL® Cedar Trail-M Processor N2600 |
|
Active Screen Size |
23" inches ( 58.42cm) diagonal |
|
|
Pixel Pitch |
0.2652 (H) x 0.2652 (V) mm |
|
|
Resolution |
1920x1080 |
|
|
Contrast Ratio |
1000:1 (typ.) |
|
|
Display Color |
16.7M colors |
|
|
Brightness |
300cd/m2 (typ.) |
|
|
Viewing Angle |
-89°~89° (H); -89 ° ~89° (V) |
|
|
Recommend Resolution |
1920x1080 @60Hz, 75Hz |
|
|
Power Consumption |
48 W typical, normal operation |
|
|
Touch (Optional) |
Capacitive Touch RS232 / USB |
System Specification |
|
Form Factor |
3.5” SBC form factor (148mmx102mm) |
|
|
Processor |
1. INTEL® Cedar Trail-M Processor N2600 |
|
|
System Chipset |
Intel® NM10 |
|
|
System Memory |
DDR3 800MHz Single CH up to 2GB |
|
|
BIOS |
AMI 16MB SMT Flash ROM |
|
|
LCD Support |
Onboard 1 * 24-bits Dual channel & 1 * 18-bits Single LVDS connectors |
|
|
Ethernet |
2 * RTL8111E PCI-EVL Gigabit LAN |
|
|
Audio |
Realtek ALC662 HD Audio CODEC with 4-Channel |
|
|
Serial |
1 x RS-232, 1 x RS-232/422/485* |
|
|
USB |
Embedded 7 * USB 2.0/1.1 |
|
|
SDD Interface ( Optional ) |
MiniPCIe SSD ( Optional 32GB or 16GB ) ( Optional ) |
|
|
2.5" HDD |
2.5" 320G |
|
|
Operating Temperature |
-20 ~ 60°C |
|
|
I / O Interface |
4 * USB 2.0/1.1 ports
2 * RJ-45 ports
Line-out port 1 * DVI-I port 1 / 1* 12V DC-IN JACK / 2* COM port RS232 |
|
|
Application |
ATM, Automation, Medical Equipment, Security, General Application, Transportation, Digital Signage, Kiosk, POS machine, LCD TV PC, Embedded Fanless application
|
