TBSAT272-1900


n   Product Specifications

System Board

Intel® BayTrail-D SoC Processor, Celeron J1900

Memory

1x DDR3L 1333 MT/S SO-DIMM up to 8 GB

I/O Panel

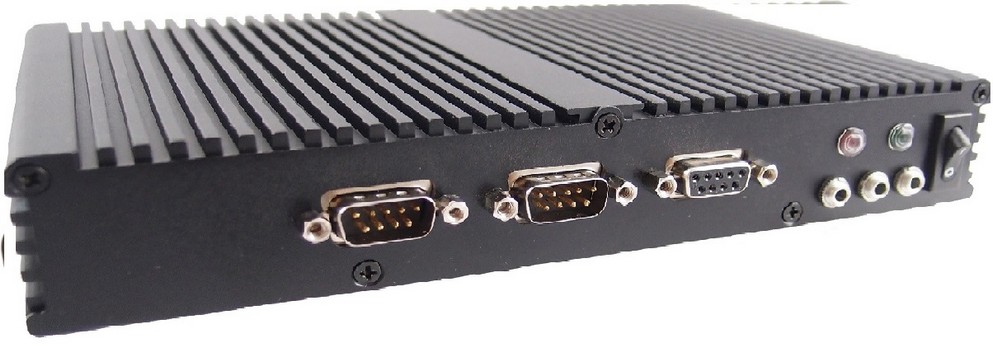

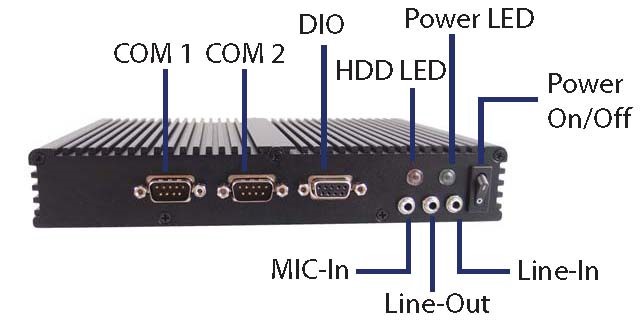

Front IOs

1x Power Button

1x HDD LED

1x Power LED

2x COM (support RS-232/422/485)

1x DIO

3x Audio Jacks for Line-out/Line-In / Mic-In

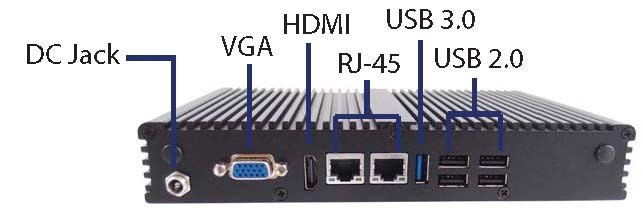

Rear IOs

1x VGA

1x HDMI

2x RJ-45 Ports (GbE)

1x USB 3.0

4x USB 2.0

1x DC Jack

Storage

1x Option mSATA Socket

1x 2.5" SATA HDD / SSD

Wifi

802.11b/g/n

DIO

1x 8-bits programmable DIO (4-In, 4-Out)

Expansion Slot

2x mPCIe Sockets

OS Support

Windows 7 , Window 8, Linux

Power Supply

DC 12V

Temperature / Humidity

Operating: 0°C to 50°C, 0%-95%, non-condensing

Storage: -20°C to 80°C, 0%-95%, non-condensing

Hardware Monitor

Voltages monitoring

Temperature monitoring

Watchdog Timer

Programmable WDT to generate System reset event

TPM

Option Interfile SLB9635 for TPM support

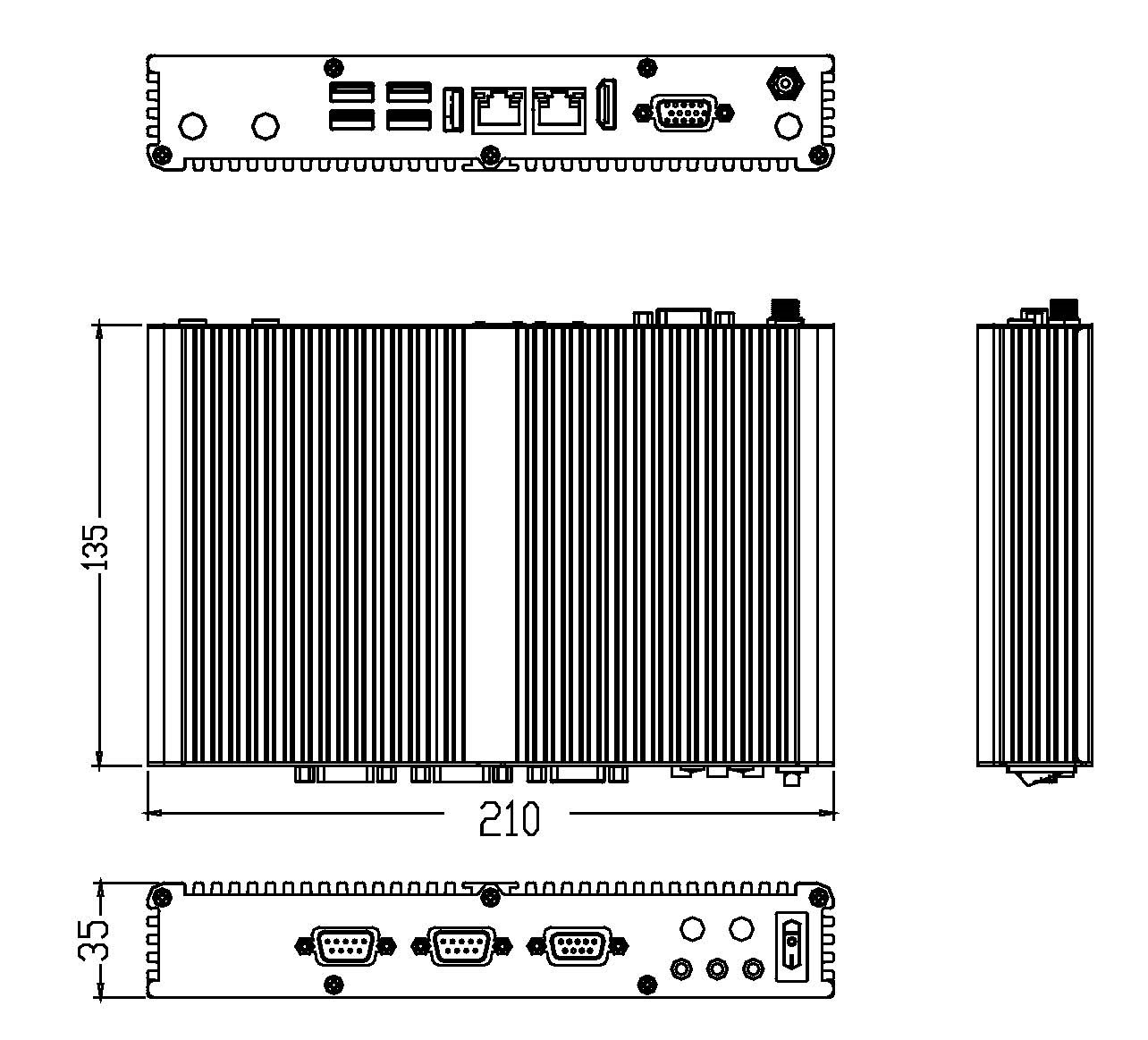

Dimensions

210 x 35 x 135mm (Wx Hx D)

Mounting

VESA mount

Certifications

CE, FCC Class A
