TBC390F541 Serial
Specifications :
n Product Dimension |
n 185 (W) * 165 (D) * 48 (H) mm |
n Product Model |
n TBC390F541XX(W)19B (TB390F541 – S)
n TBC390F541AA(W)19B (TB390F541- 8 L )
n TBC392F541CC(W)19B ( TB390F-541- 8 C ) |
n MB Model & Size |
n TBF541-1900 |
n BIOS |
n AMI UEFI |
n CPU |
n INTEL® Bay Trail-D J1900 SoC Processor |
n Memory |
n One CH SO-DIMM / DDR3L 1333/1066MHz (Max. up to 8GB ) |
n Storage |
n 2.5” SATA Device * 1
n m-SATA SSD (mini-PCIE Slot) * 1 |
n Colors |
n Black |
n Front I/O Port |
n Power SW * 1
n HDD LED * 1

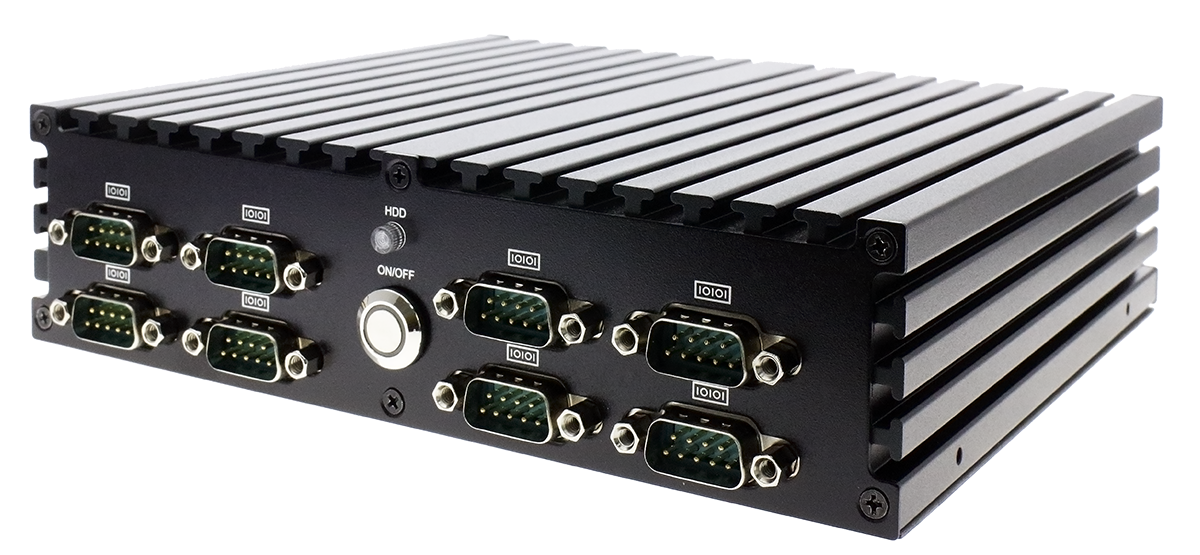

n COM * 8 (TBC390F541CC(W)19B only)

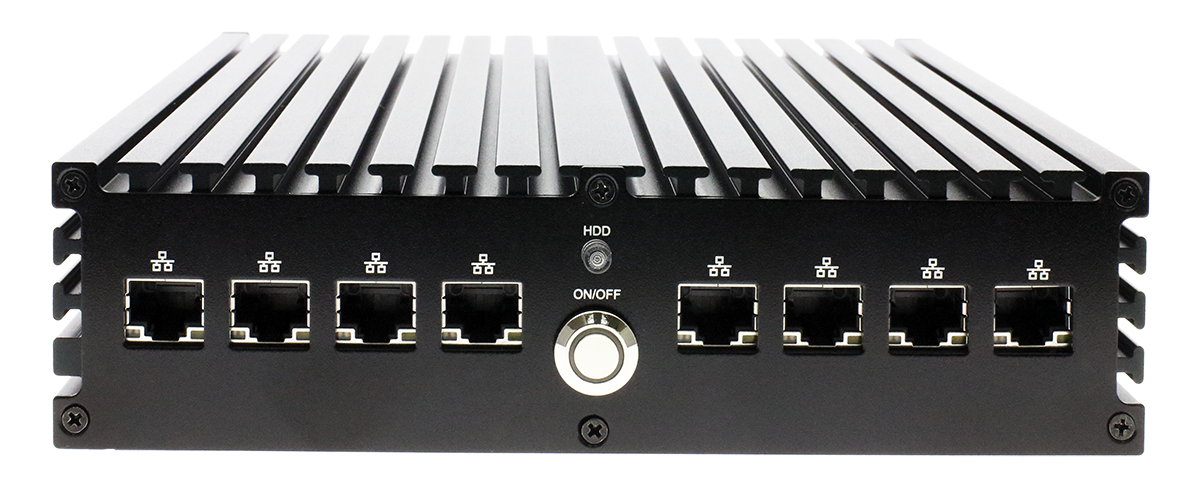

n Intel Giga LAN * 8 (TBC390F541AA(W)19B only) |
n Rear I/O Port |
n USB3.0 * 1 , USB2.0 * 3
n VGA * 1 , HDMI * 1
n Giga LAN * 2
n MIC * 1 , Line out * 1
n COM * 1
n DC-in Jack * 1
n Reset SW * 1
n WiFi Port * 2 (optional) |
n Power Source |
n AC 90~240V / 60W / DC-12V Adapter / Lock |
n Expansion Interface |
n Mini PCI-E * 2 (Full-size) |
n Accessory |
n Power cord * 1
n User’s Manual * 1 , CD * 1
n Wall mount * 1
n Screw Package * 1 |
n Packing |
n Net Weight:2.4KG
n Gross Weight:3.4KG
n Color Box Dimension: 250 (W) x 118 (D) x 295 (H) mm |
n Temperature |
n Operating within 0~60 centigrade
n Storage within -10-70 centigrade |
n Certification |
n EMC : CE , FCC
n Safety : RoHS , ErP |
n Applications |
n Industrial Control System
n Networking Server System |
